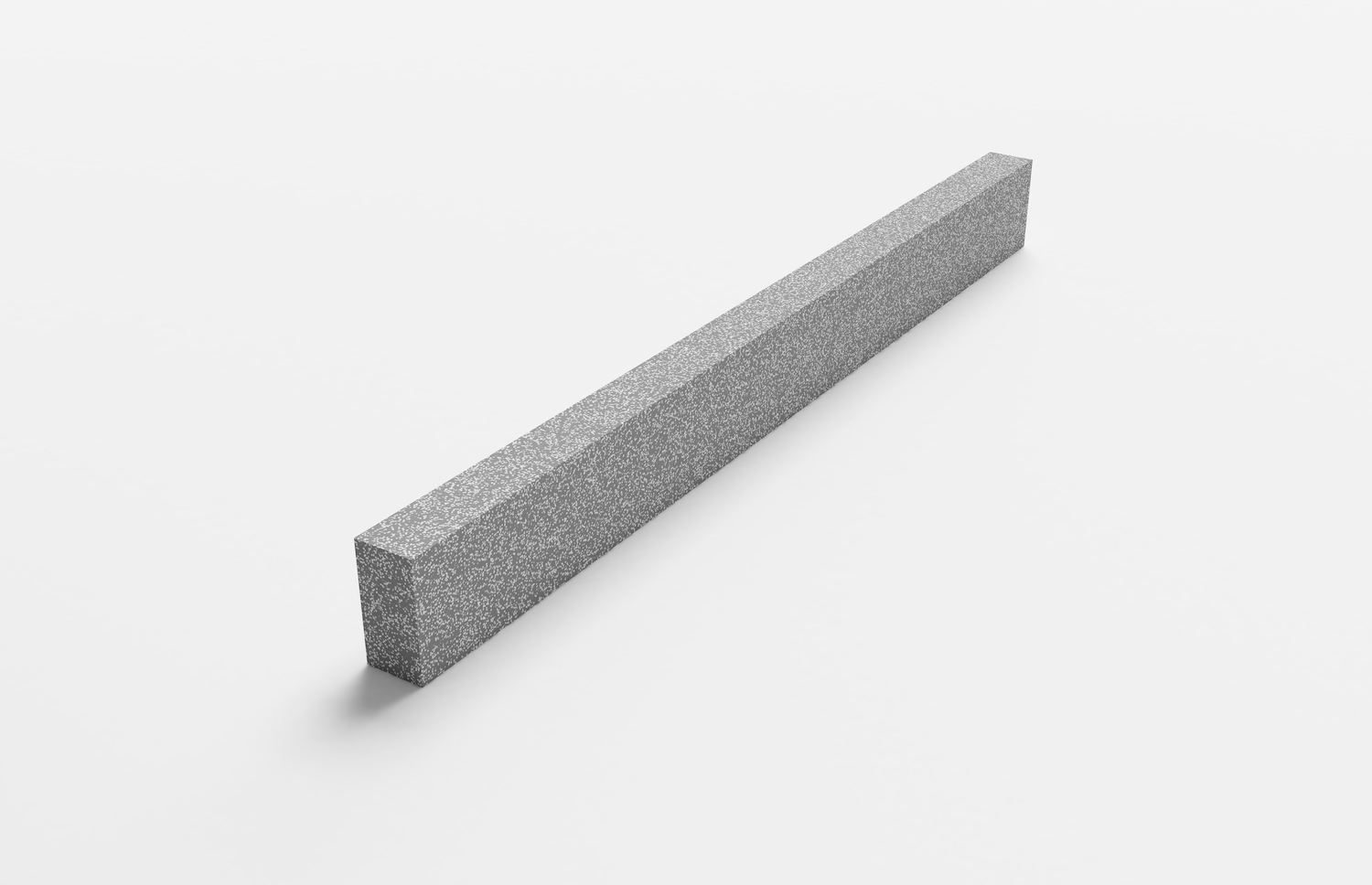

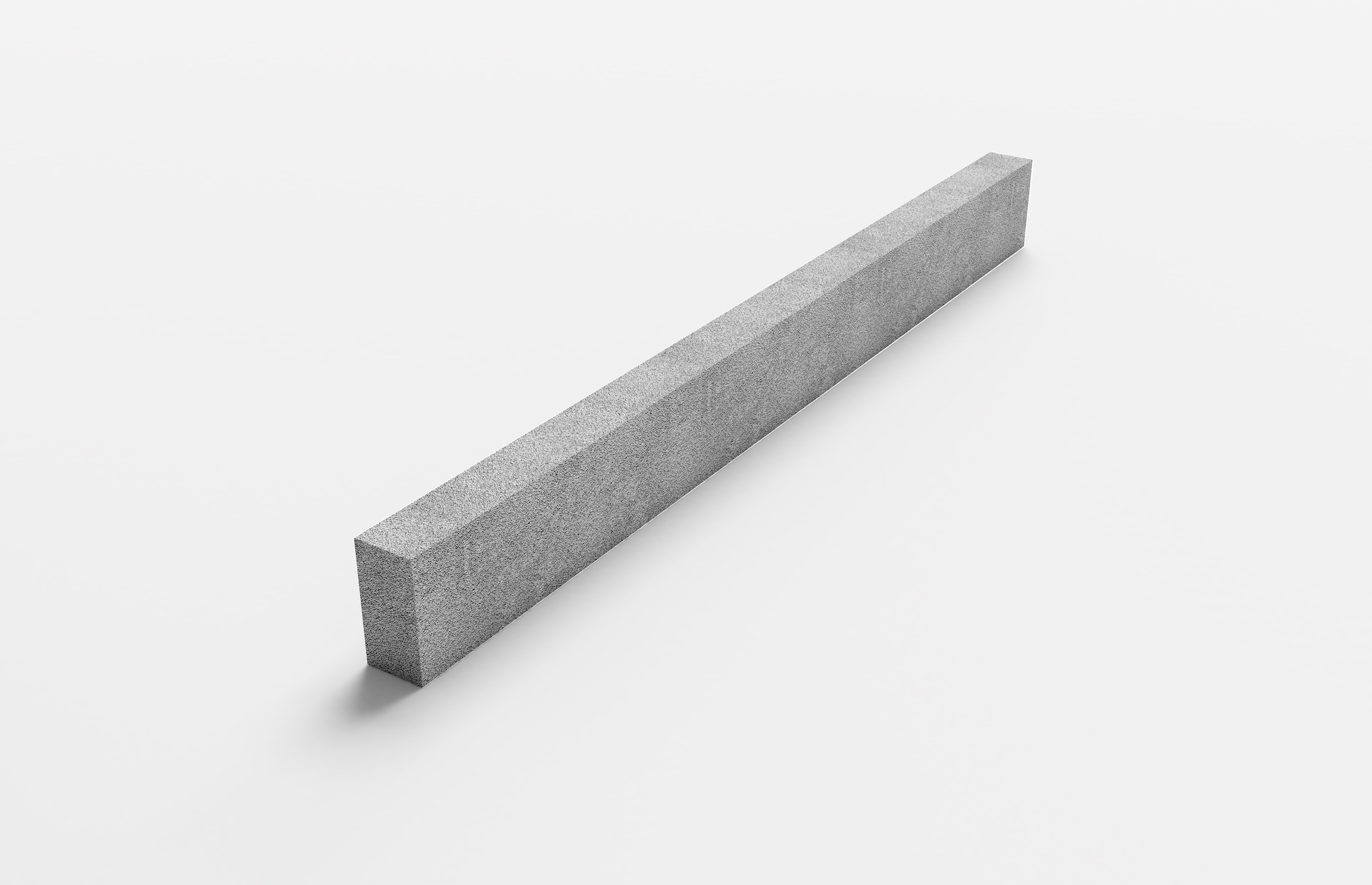

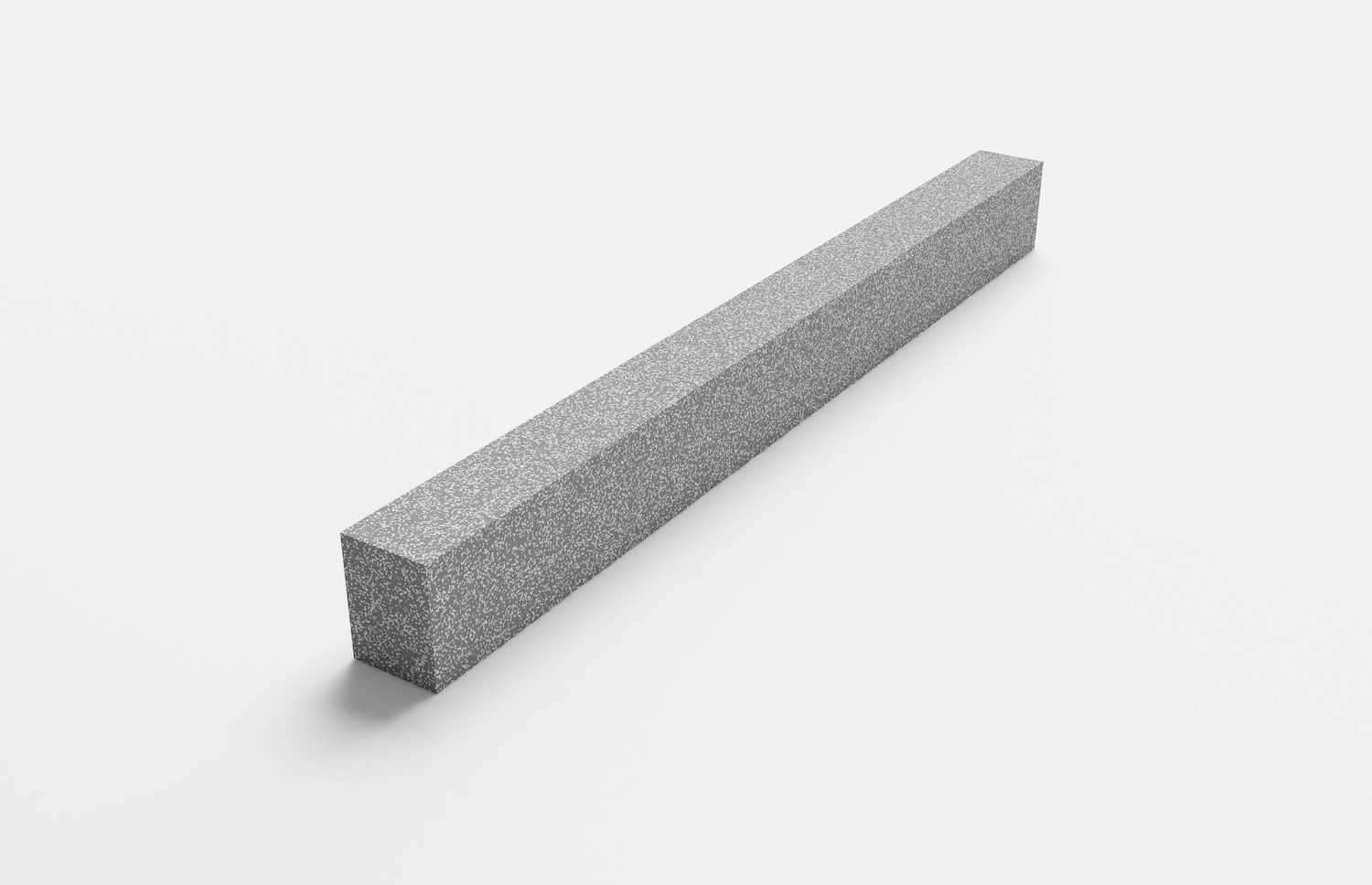

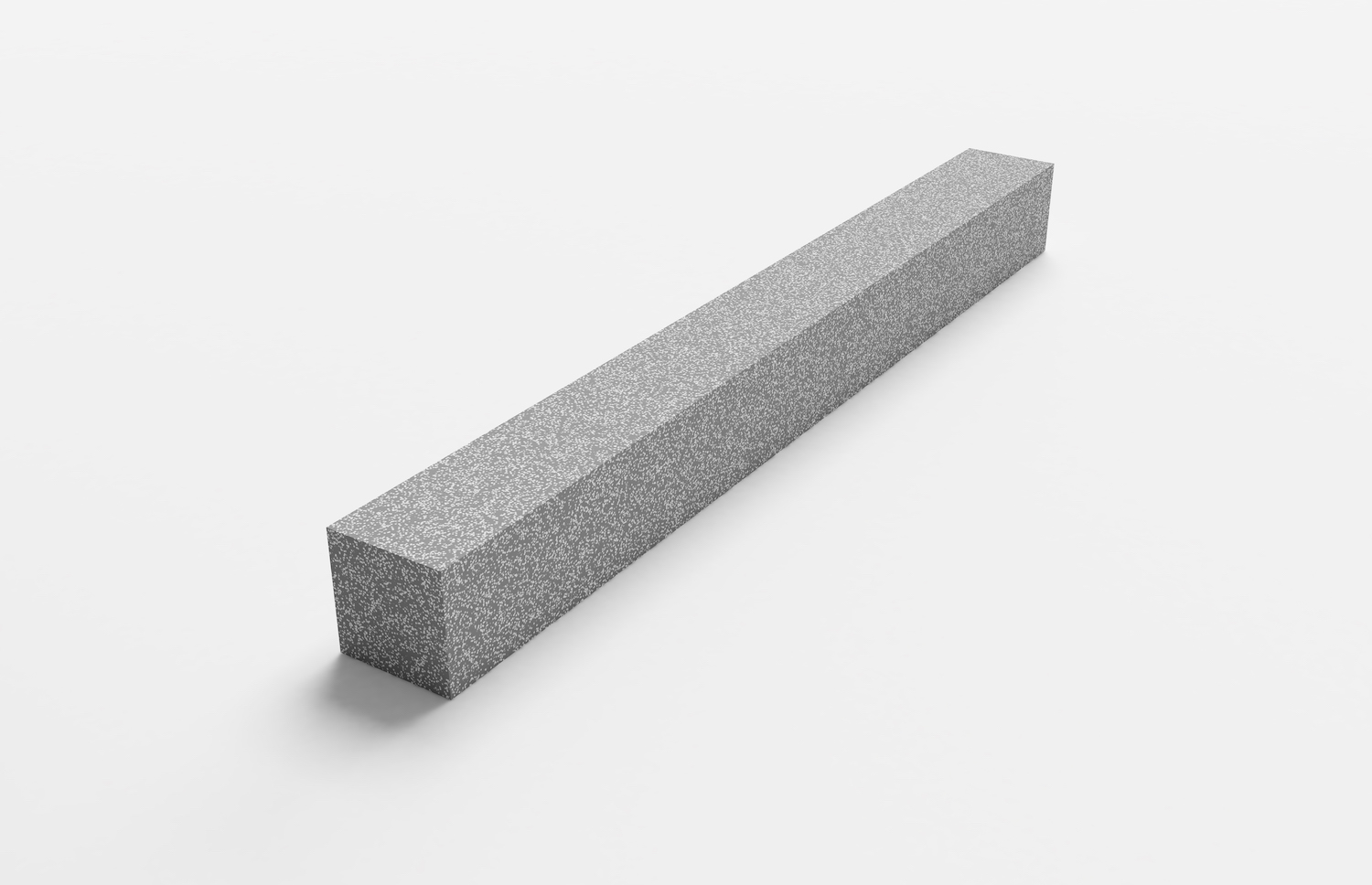

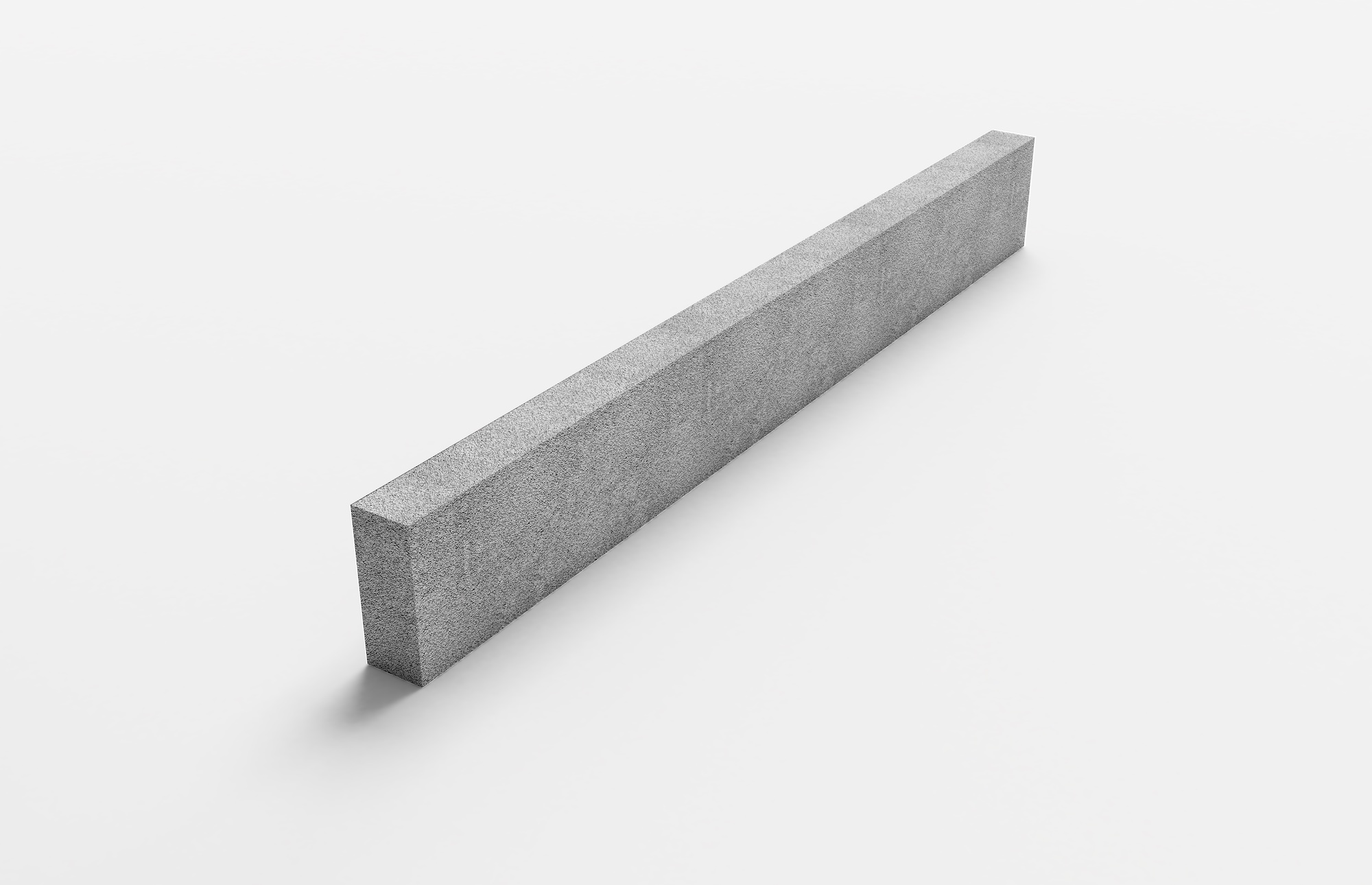

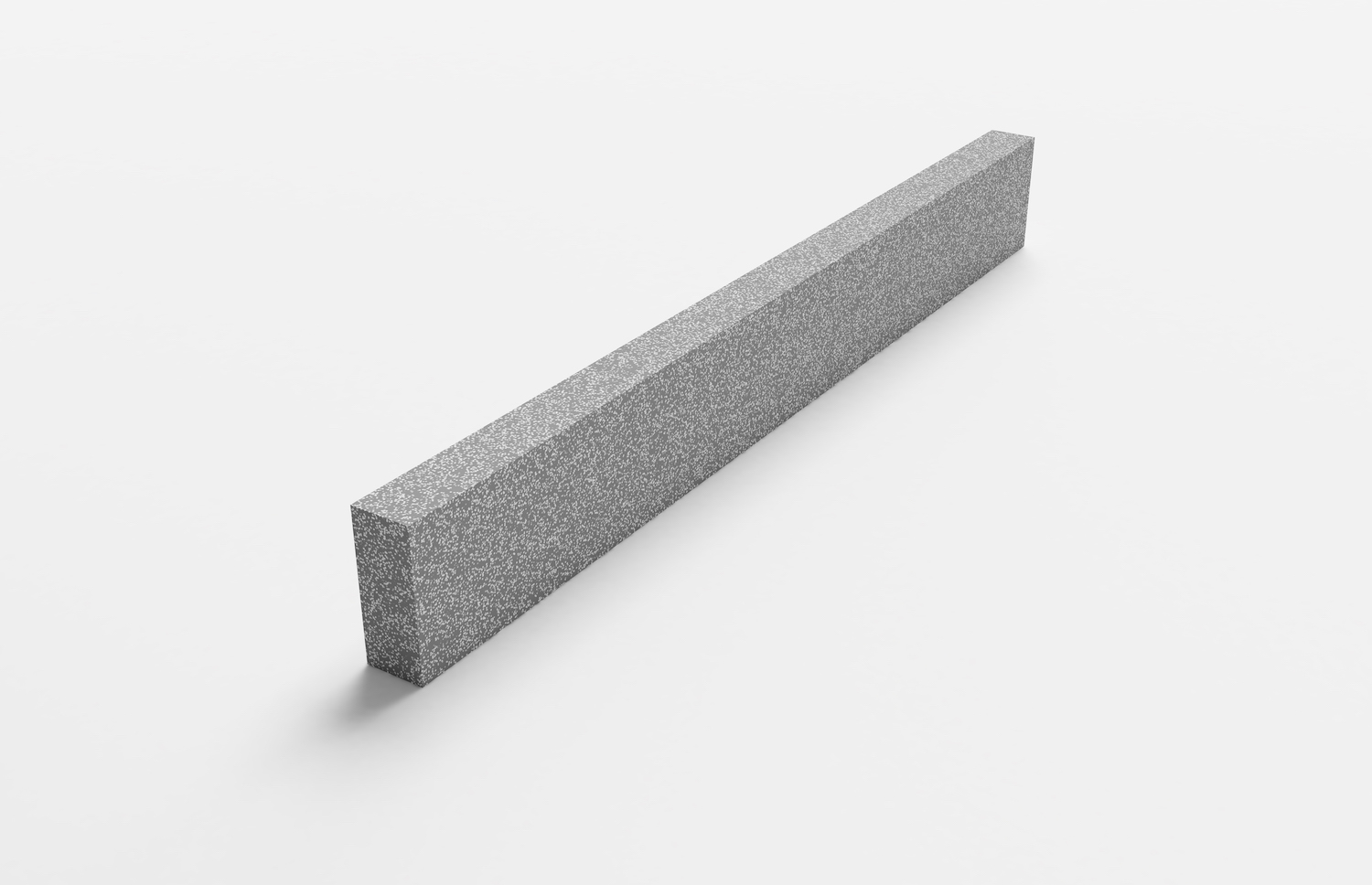

Lentosan EPS Granule Lintels have been manufactured with a lighter weight (500kg/m3) to reduce the static load on structures, as a result of our R&D activities aimed at contributing to earthquake safety. Generally speaking, EPS Granule Lintels are also "horizontal" structural elements that save time as they are easily applied during wall construction, acting as an arch over door and window openings in walls. They are produced with or without reinforcement upon request.

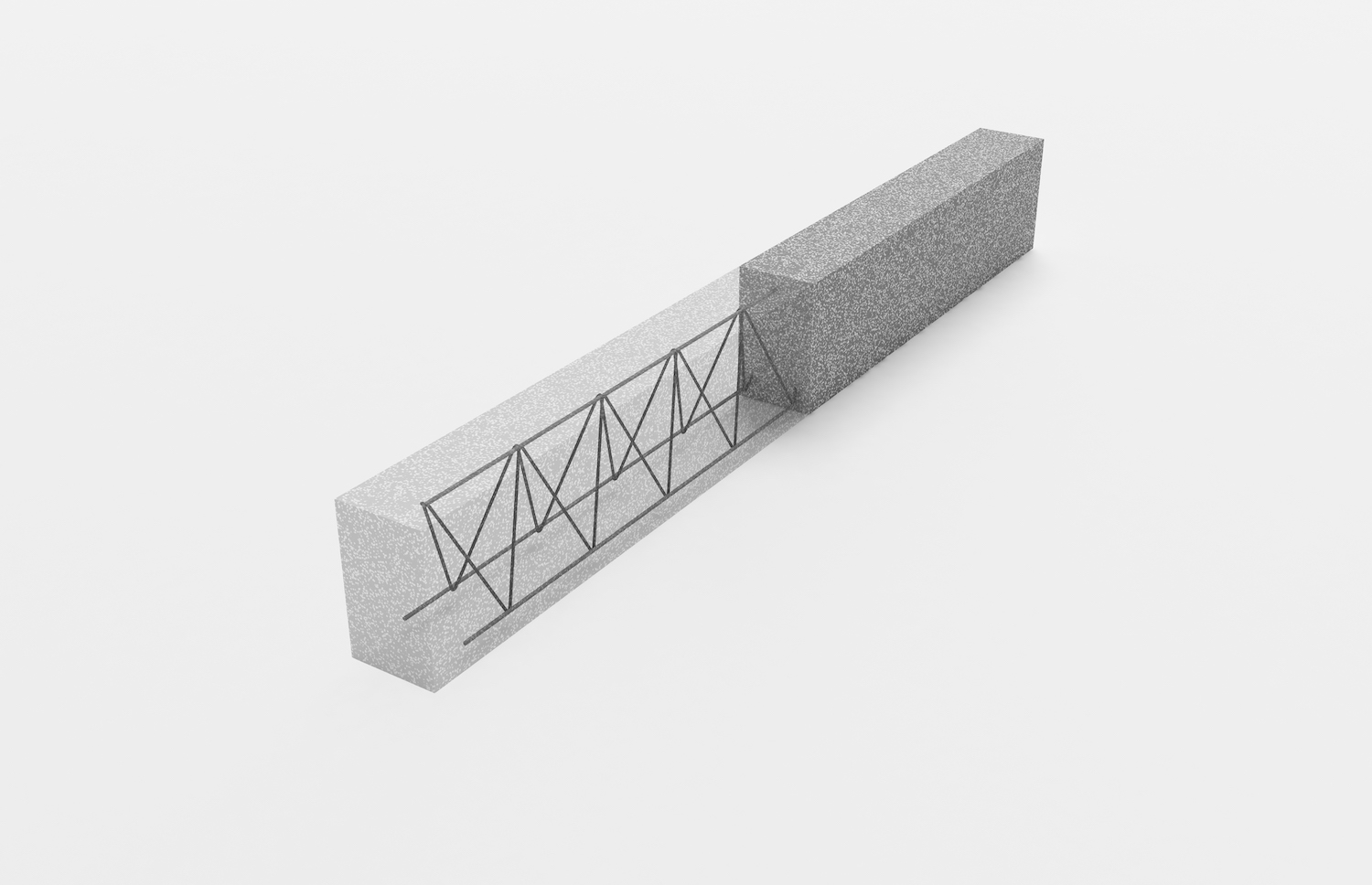

Thanks to our special reinforcement system, our EPS Granule lintels, which have a very high load-bearing capacity (8.67kN/m at 1m span), can be produced in various sizes up to 5m in length. Thanks to our short lead times, they enable you to continue your work without disruption, offering practical, durable, economical, and functional solutions to the construction industry.

Length: 600- 5000mm ± 15mm

Width: 100 - 300mm ± 5mm

Height: 190 - 290mm ± 5mm

Load-bearing Capacity: 3.50kN/m

Deflection: ≤ 1/200

Reaction to Fire: A1

Dry Unit Density: 500 - 550 kg/m3
